Performance		Model	FP-34	FP-51	FP-68	FP-85	FP-102	FP-136	FP-170	FP-204	FP-238
Rated Airflow (m³/h)		High	340	510	680	850	1020	1360	1700	2040	2380
		Medium	260	390	510	640	770	1020	1280	1530	1790
		Low	170	260	340	430	510	680	850	1020	1190
Rated Cooling Capacity (W / Kcal/h)		H	1.8	2.7	3.6	4.5	5.4	7.2	9	10.8	12.6
Rated Cooling Capacity (W / Kcal/h)		H	1548	2322	3096	3870	4644	6192	7740	9288	10836
Rated Heating Capacity (Kw / Kcal/h)		H	2.7	4.05	5.4	6.75	8.1	10.8	13.5	16.2	18.9
Rated Heating Capacity (Kw / Kcal/h)		H	2322	3483	4644	5805	6966	9288	11610	13932	16254
Input Power (W)	12Pa	H	37	52	62	76	96	134	152	189	228
	30Pa	H	44	59	72	87	108	156	174	212	253
	50Pa	H	49	66	84	100	118	174	210	250	300
Noise Level [dB(A)]	12Pa	H	37	39	41	43	45	46	48	50	52
	30Pa	H	40	42	44	46	47	48	50	52	54
	50Pa	H	42	44	46	47	49	50	52	54	56
Water Flow Rate (Kg/h)			350	510	660	800	980	1280	1600	1920	2230
Working Pressure (Kpa)			30	30	30	30	40	40	40	40	50
Number of Fans			1	2				3	4
Weight (Kg)	WA		17	18	19	22	26	39	43	49	52
Weight (Kg)	With return air box		20	22	23	27	30	44	48	54	58
Water Inlet/Outlet			3/4”Internal Thread
Condensate Drain Pipe			3/4”External Thread
Power Supply			220V/50Hz
Notes			1、Cooling conditions: Inlet air dry bulb temperature: 27°C, wet bulb temperature: 19.5°C; Inlet water temperature: 7°C, water temperature difference: 5°C. 2、Heating conditions: Inlet air dry bulb temperature: 21°C; Inlet hot water temperature: 60°C; Hot water flow rate is the same as cooling conditions. 3、Pressure test: Units are pressure tested at 2.0 MPa (20 bar), with a maximum allowable working pressure of 1.6 MPa (16 bar). 4、Others: Four-pipe systems are also available (e.g., 1-heating-2-cooling, 2-heating-2-cooling, 3-heating-1-cooling configurations).

Product Introduction

Product Overview The Ultra-Thin Fan Coil Unit is engineered for maximum performance in minimal space.It fits seamlessly into constrained ceiling cavities without compromising on airflow or capacity. Technical Superiority Featuring a high-efficiency EC motor and enhanced copper/aluminum coils, this unit ensures rapid temperature adjustment and significant energy savings. Its robust construction guarantees long-term reliability.

Applications

Hotel Renovations: Perfect for retrofitting existing buildings where ceiling space is limited.
Modern Apartments: Provides discreet climate control in luxury residences.
Office Buildings: Ideal for supplemental heating/cooling in server rooms or executive suites.
Historic Building Retrofits: Maintains architectural integrity while adding modern comfort.

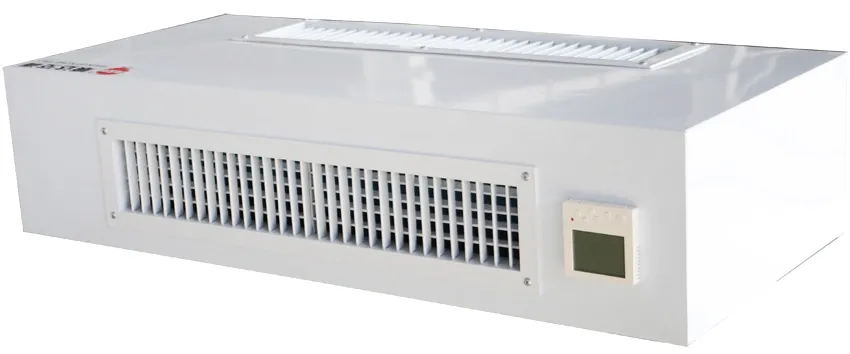

Ultra-thin fan coil unit

Ultra-Thin Fan Coil Unit for spaces with limited ceiling void. Our high-efficiency unit delivers powerful, quiet heating and cooling, making it the ideal solution for modern residential and commercial renovations.

Advantages

Space-Saving Design: Up to 40% thinner than conventional units, enabling flexible installation.
Whisper-Quiet Operation: Advanced fan blade design and insulation ensure noise levels below 45 dB(A).
Energy Efficient: EC motor technology reduces power consumption by up to 30%.
Easy Maintenance: Removable front panel and accessible filters simplify cleaning and service.

Send Inquiry

Performance	Model	FP-34	FP-51	FP-68	FP-85	FP-102	FP-136	FP-170	FP-204	FP-238
Rated Airflow (m³/h)	High	340	510	680	850	1020	1360	1700	2040	2380
Medium	260	390	510	640	770	1020	1280	1530	1790
Low	170	260	340	430	510	680	850	1020	1190
Rated Cooling Capacity (W / Kcal/h)	H	1.8	2.7	3.6	4.5	5.4	7.2	9	10.8	12.6
H	1548	2322	3096	3870	4644	6192	7740	9288	10836
Rated Heating Capacity (Kw / Kcal/h)	H	2.7	4.05	5.4	6.75	8.1	10.8	13.5	16.2	18.9
H	2322	3483	4644	5805	6966	9288	11610	13932	16254
Input Power (W)	12Pa	H	37	52	62	76	96	134	152	189	228
30Pa	H	44	59	72	87	108	156	174	212	253
50Pa	H	49	66	84	100	118	174	210	250	300
Noise Level [dB(A)]	12Pa	H	37	39	41	43	45	46	48	50	52
30Pa	H	40	42	44	46	47	48	50	52	54
50Pa	H	42	44	46	47	49	50	52	54	56
Water Flow Rate (Kg/h)	350	510	660	800	980	1280	1600	1920	2230
Working Pressure (Kpa)	30	30	30	30	40	40	40	40	50
Number of Fans	1	2	3	4
Weight (Kg)	WA	17	18	19	22	26	39	43	49	52
With return air box	20	22	23	27	30	44	48	54	58
Water Inlet/Outlet	3/4”Internal Thread
Condensate Drain Pipe	3/4”External Thread
Power Supply	220V/50Hz
Notes	1、Cooling conditions: Inlet air dry bulb temperature: 27°C, wet bulb temperature: 19.5°C; Inlet water temperature: 7°C, water temperature difference: 5°C. 2、Heating conditions: Inlet air dry bulb temperature: 21°C; Inlet hot water temperature: 60°C; Hot water flow rate is the same as cooling conditions. 3、Pressure test: Units are pressure tested at 2.0 MPa (20 bar), with a maximum allowable working pressure of 1.6 MPa (16 bar). 4、Others: Four-pipe systems are also available (e.g., 1-heating-2-cooling, 2-heating-2-cooling, 3-heating-1-cooling configurations).
