Performance		Model	FP-34	FP-51	FP-68	FP-85	FP-102	FP-136	FP-170	FP-204	FP-238
Rated Airflow (m³/h)		High	340	510	680	850	1020	1360	1700	2040	2380
		Medium	260	390	510	640	770	1020	1280	1530	1790
		Low	170	260	340	430	510	680	850	1020	1190
Rated Cooling Capacity (W / Kcal/h)		H	1.8	2.7	3.6	4.5	5.4	7.2	9.0	10.8	12.6
Rated Cooling Capacity (W / Kcal/h)		H	1548	2322	3096	3870	4644	6192	7740	9288	10836
Rated Heating Capacity (Kw / Kcal/h)		H	2.7	4.05	5.4	6.75	8.1	10.8	13.5	16.2	18.9
Rated Heating Capacity (Kw / Kcal/h)		H	2322	3483	4644	5805	6966	9288	11610	13932	16254
Input Power (W)	12Pa	H	37	52	62	76	96	134	152	189	228
	30Pa	H	44	59	72	87	108	156	174	212	253
	50Pa	H	49	66	84	100	118	174	210	250	300
Noise Level [dB(A)]	12Pa	H	37	39	41	43	45	46	48	50	52
	30Pa	H	40	42	44	46	47	48	50	52	54
	50Pa	H	42	44	46	47	49	50	52	54	56
Water Flow Rate (Kg/h)			350	510	660	800	980	1280	1600	1920	2230
Working Pressure (Kpa)			30	30	30	30	40	40	40	40	50
Number of Fans			1	2				3	4
Weight (Kg)	WA		17	18	19	22	26	39	43	49	52
Weight (Kg)	With return air box		20	22	23	27	30	44	48	54	58
Water Inlet/Outlet			3/4”Internal Thread
Condensate Drain Pipe			3/4”External Thread
Power Supply			220V/50Hz
Notes			1、Cooling conditions: Inlet air dry bulb temperature: 27°C, wet bulb temperature: 19.5°C; Inlet water temperature: 7°C, water temperature difference: 5°C.
			2、Heating conditions: Inlet air dry bulb temperature: 21°C; Inlet hot water temperature: 60°C; Hot water flow rate is the same as cooling conditions.
			3、Pressure test: Units are pressure tested at 2.0 MPa (20 bar), with a maximum allowable working pressure of 1.6 MPa (16 bar).
			4、Others: Four-pipe systems are also available (e.g., 1-heating-2-cooling, 2-heating-2-cooling, 3-heating-1-cooling configurations).

Product Introduction

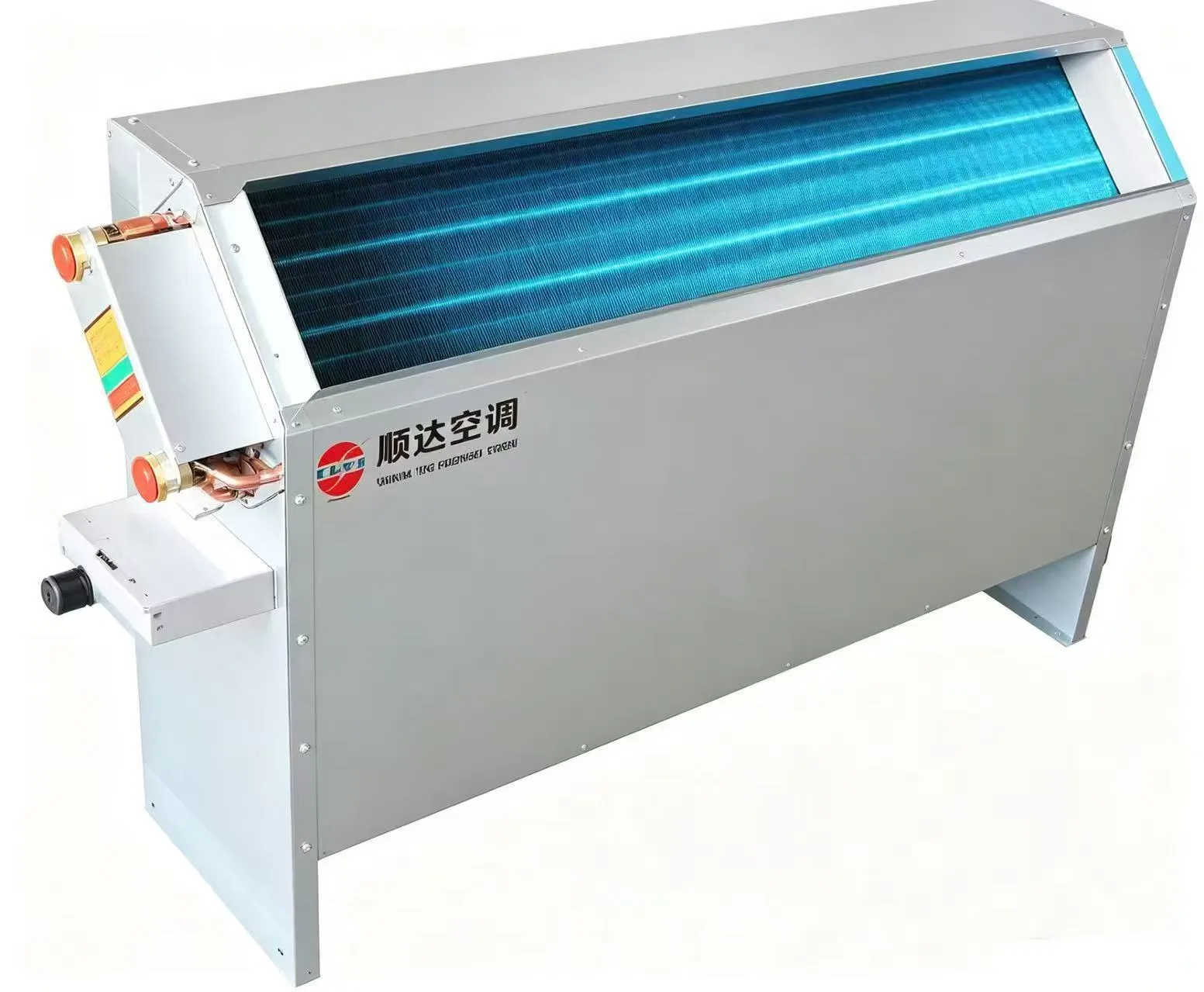

The FP-LA Vertical Concealed Fan Coil Unit Series integrates advanced fan and heat exchange technology within a sleek, encasable cabinet. It is engineered for vertical installation within false walls, ceiling plenums, or dedicated enclosures, making it invisible in the finished room. The unit features a high-efficiency centrifugal fan motor for powerful yet quiet airflow, paired with a copper tube and aluminum fin heat exchanger for optimal thermal transfer. It comes with a standard drain pan and is compatible with centralized control systems, providing a seamless blend of performance and discreet design for modern building HVAC needs.

Applications

Office Buildings & Commercial Towers
Hotel Rooms and Corridors
Hospitals and Healthcare Facilities
Luxury Apartments and Residences
Conference Rooms and Meeting Spaces
Any commercial project requiring a discreet, space-saving air conditioning terminal solution.

FP-LA Vertical Concealed Fan Coil Series | High-Efficiency, Low-Noise AC Terminal Unit

The FP-LA series is a high-performance vertical concealed fan coil unit designed for quiet, energy-efficient cooling and heating in commercial spaces. Its compact and concealed installation saves valuable interior space.

Advantages

Space-Saving & Aesthetic Design: Fully concealed installation preserves interior aesthetics and maximizes usable floor space.
Superior Quiet Operation: Optimized aerodynamic design and a low-noise fan motor ensure minimal sound disturbance.
Energy Efficient: High-efficiency motor and heat exchanger reduce power consumption, lowering operational costs.
Flexible Installation & Control: Easily integrates with building management systems and allows for individual zone control.
Reliable Performance: Durable construction and quality components ensure long-term, stable operation with minimal maintenance.
