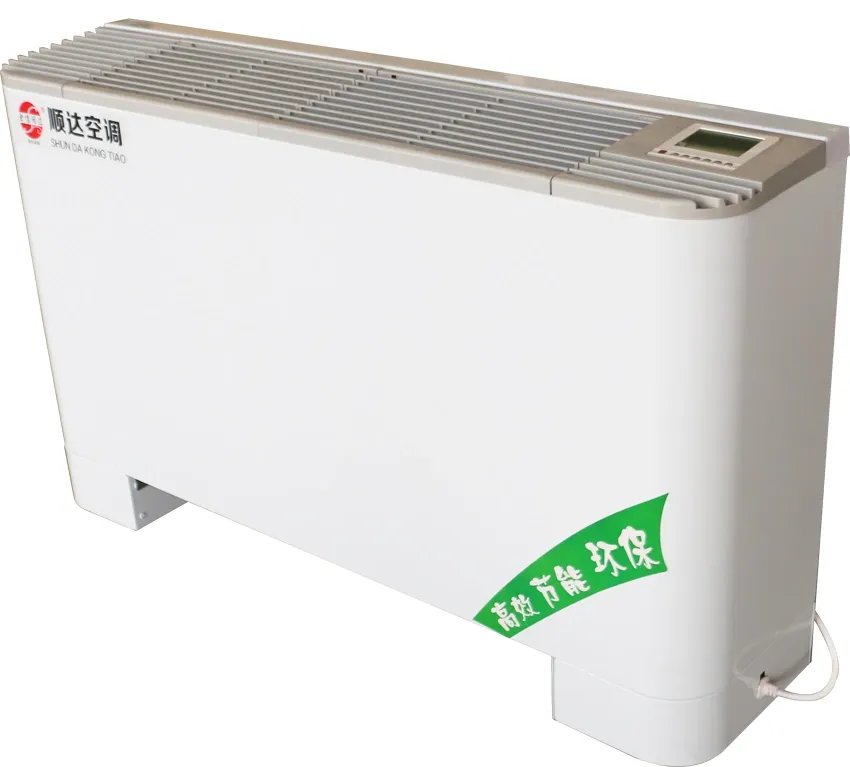

FP Series Exposed Fan Coil Units: Vertical & Horizontal Types

1 / 4

Specifications

Performance		Model	FP-34	FP-51	FP-68	FP-85	FP-102	FP-136	FP-170	FP-204	FP-238
Rated Airflow (m³/h)		High	340	510	680	850	1020	1360	1700	2040	2380
		Medium	260	390	510	640	770	1020	1280	1530	1790
		Low	170	260	340	430	510	680	850	1020	1190
Rated Cooling Capacity (W / Kcal/h)		H	1.8	2.7	3.6	4.5	5.4	7.2	9	10.8	12.6
Rated Cooling Capacity (W / Kcal/h)		H	1548	2322	3096	3870	4644	6192	7740	9288	10836
Rated Heating Capacity (Kw / Kcal/h)		H	2.7	4.05	5.4	6.75	8.1	10.8	13.5	16.2	18.9
Rated Heating Capacity (Kw / Kcal/h)		H	2322	3483	4644	5805	6966	9288	11610	13932	16254
Input Power (W)	12Pa	H	37	52	62	76	96	134	152	189	228
	30Pa	H	44	59	72	87	108	156	174	212	253
	50Pa	H	49	66	84	100	118	174	210	250	300
Noise Level [dB(A)]	12Pa	H	37	39	41	43	45	46	48	50	52
	30Pa	H	40	42	44	46	47	48	50	52	54
	50Pa	H	42	44	46	47	49	50	52	54	56
Water Flow Rate (Kg/h)			350	510	660	800	980	1280	1600	1920	2230
Working Pressure (Kpa)			30	30	30	30	40	40	40	40	50
Number of Fans			1	2				3	4
Weight (Kg)	WA		17	18	19	22	26	39	43	49	52
Weight (Kg)	With return air box		20	22	23	27	30	44	48	54	58
Water Inlet/Outlet			3/4”Internal Thread
Condensate Drain Pipe			3/4”External Thread
Power Supply			220V/50Hz
Notes			1、Cooling conditions: Inlet air dry bulb temperature: 27°C, wet bulb temperature: 19.5°C; Inlet water temperature: 7°C, water temperature difference: 5°C. 2、Heating conditions: Inlet air dry bulb temperature: 21°C; Inlet hot water temperature: 60°C; Hot water flow rate is the same as cooling conditions. 3、Pressure test: Units are pressure tested at 2.0 MPa (20 bar), with a maximum allowable working pressure of 1.6 MPa (16 bar). 4、Others: Four-pipe systems are also available (e.g., 1-heating-2-cooling, 2-heating-2-cooling, 3-heating-1-cooling configurations).

Product Introduction

The FP Series Exposed Fan Coil Units are engineered for durability and performance in visible installations. Available in vertical (floor-standing) and horizontal (ceiling-suspended) types, this series provides a practical solution for room-level climate control without the need for ductwork or dropped ceilings. Constructed with corrosion-resistant cabinets and high-efficiency copper tube/aluminum fin heat exchangers, these units ensure reliable heat transfer and long service life. They are equipped with low-noise centrifugal fans and multi-speed motors, allowing users to balance airflow and sound levels according to comfort needs. The units feature easy-access panels for straightforward maintenance and cleaning. Compatible with standard thermostats and building management systems, the FP Series is a flexible choice for retrofit projects and new constructions where simplicity and cost-effectiveness are key.

Applications

Retrofitting older buildings without existing duct systems
Hotels, offices, and apartments requiring individual room control
Server rooms and telecom shelters needing spot cooling
Classrooms, laboratories, and medical clinics
Restaurants, retail stores, and other commercial spaces
Any project that values easy installation and maintenance access

FP Series Exposed Fan Coil Units: Vertical & Horizontal Types

The FP Series offers versatile exposed fan coil units in both vertical and horizontal configurations. Designed for easy installation and flexible placement, they provide efficient heating and cooling for a wide range of spaces where a concealed unit is not feasible.

Advantages

Flexible Installation: Vertical and horizontal types adapt to various room layouts and space constraints without costly renovation.
Cost-Effective Solution: Lower initial installation cost compared to concealed units, as no void space or elaborate framing is required.
Easy Maintenance: Removable front panels and accessible filters simplify routine cleaning and service, reducing downtime.
Energy Efficient: High-efficiency motors and optimized heat exchangers deliver effective cooling and heating with lower energy consumption.
Quiet Operation: Designed with aerodynamically optimized fan blades and insulated cabinets for minimal operational noise.
Durable Construction: Robust, powder-coated cabinets protect internal components, ensuring longevity in demanding environments.
