1 / 4

Specifications

Unit Model	Unit Air Flow (m³/h)	Unit Overall Dimensions (mm)		Face Velocity of Cooling Coil (m/s)			Outlet Static Pressure (Pa)
		Unit Overall Dimensions (mm)		2.25	2.5	2.75
		W	H	Air Flow（m³/h）
ZK(X)-3	3050	805	885	2745	3050	3355	200～800
ZK(X)-4	4016	905	885	3614.4	4016	4417.6	200～800
ZK(X)-5	5020	1005	985	4518	5020	5522	200～800
ZK(X)-6	6186	1005	1085	5567.4	6186	6804.6	200～800
ZK(X)-8	8025	1205	1185	7222.5	8025	8827.5	200～800
ZK(X)-10	10068	1205	1285	9061.2	10068	11074.8	200～1000
ZK(X)-12	12134	1305	1285	10920.6	12134	13347.4	200～1000
ZK(X)-15	15075	1405	1385	13576.5	15075	16582.5	200～1000
ZK(X)-20	20082	1605	1885	18073.8	20082	22090.2	300～1000
ZK(X)-25	25025	1805	1885	22522.5	25025	27527.5	300～1000
ZK(X)-30	30060	1805	2185	27054	30060	33066	300～1200
ZK(X)-35	35350	2005	2285	31815	35350	38885	500～1200
ZK(X)-40	40156	2105	2405	36140.4	40156	44171.6	500～1200
ZK-50	50562	2505	2505	45505.8	50562	55618.2	500～1500
ZK-60	60280	2905	2506	54252	60280	66308	500～1500
ZK-80	80156	3005	3405	72140.4	80156	88171.6	500～1500
ZK-100	100260	3605	3505	90234	100260	110286	600～1500
ZK-120	121056	4305	3505	108950.4	121056	133161.6	600～1500
ZK-140	140862	4505	3805	126775.8	140862	154948.2	600～1500
ZK-160	161236	4805	4105	145112.4	161236	177359.6	600～1500
ZK-180	180650	5205	4505	162585	180650	198715	600～1500
ZK-200	201260	5705	4505	181134	201260	221386	600～1500
ZK-220	222152	5905	4505	199936.8	222152	244367.2	600～1800
ZK-250	251882	6005	4905	226693.8	251882	277070.2	600～1800

Product Introduction

The High-efficiency Industrial Ceiling Air Conditioner is designed for large commercial spaces, delivering powerful cooling, whisper-quiet operation, and a space-saving ceiling mount that frees up valuable floor space. It is ideal for a wide range of applications including factories, warehouses, offices, retail stores, gymnasiums, and light-duty server rooms. With features such as effective temperature reduction in high-ceiling environments, uniform airflow distribution, and robust construction for continuous operation, this unit ensures improved comfort and productivity for workers and visitors alike. Whether you need to cool a manufacturing plant or a modern open-plan workspace, this energy-saving and durable air conditioner provides the perfect balance of performance, reliability, and efficiency.

Cooling Capacity

Model	Air Flow (m³/h)	4-Rows
Model	Air Flow (m³/h)	Total Cooling Capacity（Kw）	Sensible Cooling Capacity（Kw）	Pressure Drop(Pa)	Pressure Drop(KPa)	Water Flow Rate(m³/h)
ZK-3	3050	16.9	12.6	103	5.98	2.9
ZK-4	4016	22.6	16.9	104	7.94	3.9
ZK-5	5020	28.3	21.2	98	10.7	4.9
ZK-6	6186	33.8	25.4	100	10.7	5.8
ZK-8	8025	45	33.8	101	12.9	7.7
ZK-10	10068	56.4	42.3	111	14	9.7
ZK-12	12134	67.7	50.8	106	17.6	11.6
ZK-15	15075	85.3	64	106	17.3	14.7
ZK-20	20082	112.4	84.3	108	15.1	19.3
ZK-25	25025	140.7	105.5	118	18.5	24.2
ZK-30	30060	169.8	127.3	115	20.2	29.2
ZK-35	35350	198.1	148.6	115	18.8	34.1
ZK-40	40156	224.9	168.7	105	21.9	38.7
ZK-50	50562	282.6	211.9	119	23	48.6
ZK-60	60280	338.4	253.8	118	21.9	58.2
ZK-80	80156	448.8	336.6	119	27.1	77.2
ZK-100	100260	576.2	432.2	116	32.4	99.1
ZK-120	121056	694.3	520.7	119	35.4	119.4
ZK-140	140862	808.8	606.6	120	40.3	139.1
ZK-160	161236	923.4	692.6	115	46.8	158.8
ZK-180	180650	1034.2	775.7	112	52.3	177.9
ZK-200	201260	1108.1	831.1	112	62.1	190.6
ZK-220	222152	1218.9	914.2	115	62.1	209.6
ZK-250	251882	1385.1	1038.8	118	69.5	238.2

Model	Air Flow (m³/h)	8-Rows
Model	Air Flow (m³/h)	Total Cooling Capacity（Kw）	Sensible Cooling Capacity（Kw）	Pressure Drop(Pa)	Pressure Drop(KPa)	Water Flow Rate(m³/h)
ZK-3	3050	26.5	16.4	225	8.05	4.55
ZK-4	4016	34.8	21.6	246	8.05	5.99
ZK-5	5020	43.5	27	245	10.05	7.49
ZK-6	6186	53.7	33.3	257	11.3	9.23
ZK-8	8025	69.6	43.2	258	10.5	11.97
ZK-10	10068	87.3	54.1	260	12.9	15.02
ZK-12	12134	105.2	65.3	257	12.1	18.01
ZK-15	15075	130.8	81.1	255	15.1	22.49
ZK-20	20082	174.2	108	258	17.5	29.95
ZK-25	25025	217.1	134.6	257	18.9	37.33
ZK-30	30060	260.7	161.6	257	16.3	44.84
ZK-35	35350	306.6	190.1	254	17.8	52.73
ZK-40	40156	348.3	215.9	256	19.2	59.89
ZK-50	50562	438.5	271.9	264	16.8	75.42
ZK-60	60280	522.8	324.2	259	16.8	89.91
ZK-80	80156	695.2	431	256	18.9	119.6
ZK-100	100260	869.6	539.1	259	19.5	149.5
ZK-120	121056	1050	651	264	18.9	180.6
ZK-140	140862	1221.7	757.5	254	21.2	210.1
ZK-160	161236	1398.5	867	261	23.5	240.5
ZK-180	180650	1566.8	971.4	259	23.6	269.4
ZK-200	201260	1745.6	1082.3	258	27.8	300.2
ZK-220	222152	1926.8	1194.6	262	26.9	331.3
ZK-250	251882	2184.7	1354.5	264	35.4	375.7

Heating Capacity

Model	Air Flow (m³/h)	4-Rows
Model	Air Flow (m³/h)	Total Cooling Capacity(Kw)	Pressure Drop(Pa)	Pressure Drop(KPa)	Water Flow Rate(m³/h)
ZK-3	3050	25.5	93	5.49	2.2
ZK-4	4016	34.1	94	7.29	2.9
ZK-5	5020	42.7	88	9.8	3.7
ZK-6	6186	51.1	90	9.8	4.4
ZK-8	8025	68	91	11.8	5.8
ZK-10	10068	85.2	101	12.82	7.3
ZK-12	12134	102.2	96	16.16	8.8
ZK-15	15075	128.9	96	15.84	11.1
ZK-20	20082	169.8	98	13.86	14.6
ZK-25	25025	212.5	108	17.01	18.3
ZK-30	30060	256.4	105	18.54	22
ZK-35	35350	299.1	105	17.26	25.7
ZK-40	40156	339.6	95	20.08	29.2
ZK-50	50562	426.7	109	21.25	36.7
ZK-60	60280	510.9	108	20.11	43.9
ZK-80	80156	677.7	109	24.85	58.2
ZK-100	100260	870.1	106	29.74	74.8
ZK-120	121056	1048.4	109	32.5	90.1
ZK-140	140862	1221.3	110	37	104.9
ZK-160	161236	1394.3	105	42.94	119.8
ZK-180	180650	1561.6	102	48.05	134.2
ZK-200	201260	1673.2	102	57.01	143.8
ZK-220	222152	1840.5	105	57.01	158.1
ZK-250	251882	2091.5	108	63.8	179.7

Model	Air Flow (m³/h)	8-Rows
Model	Air Flow (m³/h)	Total Cooling Capacity(Kw)	Pressure Drop(Pa)	Pressure Drop(KPa)	Water Flow Rate(m³/h)
ZK-3	3050	39.9	200	7.39	3.43
ZK-4	4016	52.6	221	7.39	4.52
ZK-5	5020	65.7	220	9.59	5.65
ZK-6	6186	81	232	10.37	6.96
ZK-8	8025	105.1	233	9.64	9.03
ZK-10	10068	131.9	235	11.84	11.33
ZK-12	12134	158.9	232	11.1	13.65
ZK-15	15075	197.4	230	13.88	16.96
ZK-20	20082	263	233	16.05	22.6
ZK-25	25025	327.7	232	17.35	28.16
ZK-30	30060	393.7	232	14.95	33.83
ZK-35	35350	463	229	16.34	39.78
ZK-40	40156	525.9	231	17.63	45.19
ZK-50	50562	662.2	239	15.39	56.9
ZK-60	60280	789.5	234	15.42	67.83
ZK-80	80156	1049.8	231	17.35	90.2
ZK-100	100260	1313.1	234	17.9	112.8
ZK-120	121056	1585.4	239	17.35	136.2
ZK-140	140862	1844.8	229	19.46	158.5
ZK-160	161236	2111.7	236	21.57	181.4
ZK-180	180650	2365.9	234	21.67	203.3
ZK-200	201260	2635.8	233	25.52	226.5
ZK-220	222152	2909.5	237	24.69	250
ZK-250	251882	3298.8	239	32.49	283.4

Advantages

✅ Powerful Cooling: Delivers fast and efficient cooling for large commercial spaces.

🔇 Whisper-Quiet Operation: Perfect for offices, stores, and libraries where noise matters.

🏭 Heavy-Duty Durability: Built to withstand dust, heat, and continuous 24/7 operation.

📦 Space-Saving Design: Ceiling-mounted to free up valuable floor space.

💰 Energy-Efficient: Reduces electricity bills without compromising performance.

🌐 Wide Application: Ideal for warehouses, factories, gyms, retail stores, and server rooms.

🌡️ Precise Climate Control: Maintains consistent temperature for comfort and productivity.

🛡️ Reliable Performance: Engineered with industrial-grade components for long-term use.

Applications

Factory & Manufacturing Plants: Designed to withstand dust, heat, and continuous operation. Effectively lowers ambient temperature in assembly lines, workshops, and production areas, improving worker comfort and productivity.
Warehouses & Logistics Centers: Ideal for high-ceiling storage facilities where traditional floor-standing units are impractical. The ceiling-mounted design saves valuable floor space while providing uniform cooling throughout the entire area.
Commercial Offices & Open-plan Workspaces: Provides quiet, draft-free cooling that won't disrupt daily operations. Maintains a consistent, comfortable temperature for employees, enhancing focus and efficiency.
Retail Stores, Supermarkets & Shopping Malls: Ensures a pleasant shopping experience for customers. The sleek, unobtrusive design blends seamlessly into any commercial interior.
Gymnasiums, Sports Halls & Community Centers: Handles high occupancy loads and vigorous activity levels. Delivers strong, consistent airflow to keep athletes and visitors cool and comfortable.
Server Rooms & Data Centers (light duty): Suitable for backup cooling or small server rooms requiring precise temperature and humidity control to protect sensitive equipment.

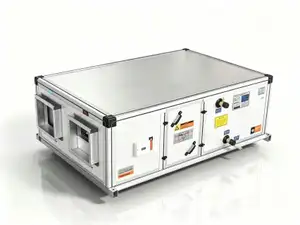

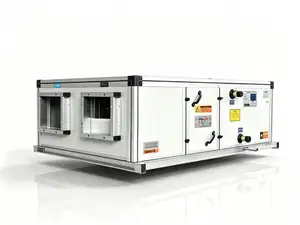

Industrial Ceiling Air Handling Units
