Specifications

Unit Model	Unit Air Flow (m³/h)	Unit Overall Dimensions (mm)		Face Velocity of Cooling Coil (m/s)			Outlet Static Pressure (Pa)
		Unit Overall Dimensions (mm)		2.25	2.5	2.75
		W	H	Air Flow（m³/h）
ZK(X)-3	3050	805	885	2745	3050	3355	200～800
ZK(X)-4	4016	905	885	3614.4	4016	4417.6	200～800
ZK(X)-5	5020	1005	985	4518	5020	5522	200～800
ZK(X)-6	6186	1005	1085	5567.4	6186	6804.6	200～800
ZK(X)-8	8025	1205	1185	7222.5	8025	8827.5	200～800
ZK(X)-10	10068	1205	1285	9061.2	10068	11074.8	200～1000
ZK(X)-12	12134	1305	1285	10920.6	12134	13347.4	200～1000
ZK(X)-15	15075	1405	1385	13576.5	15075	16582.5	200～1000
ZK(X)-20	20082	1605	1885	18073.8	20082	22090.2	300～1000
ZK(X)-25	25025	1805	1885	22522.5	25025	27527.5	300～1000
ZK(X)-30	30060	1805	2185	27054	30060	33066	300～1200
ZK(X)-35	35350	2005	2285	31815	35350	38885	500～1200
ZK(X)-40	40156	2105	2405	36140.4	40156	44171.6	500～1200
ZK-50	50562	2505	2505	45505.8	50562	55618.2	500～1500
ZK-60	60280	2905	2506	54252	60280	66308	500～1500
ZK-80	80156	3005	3405	72140.4	80156	88171.6	500～1500
ZK-100	100260	3605	3505	90234	100260	110286	600～1500
ZK-120	121056	4305	3505	108950.4	121056	133161.6	600～1500
ZK-140	140862	4505	3805	126775.8	140862	154948.2	600～1500
ZK-160	161236	4805	4105	145112.4	161236	177359.6	600～1500
ZK-180	180650	5205	4505	162585	180650	198715	600～1500
ZK-200	201260	5705	4505	181134	201260	221386	600～1500
ZK-220	222152	5905	4505	199936.8	222152	244367.2	600～1800
ZK-250	251882	6005	4905	226693.8	251882	277070.2	600～1800

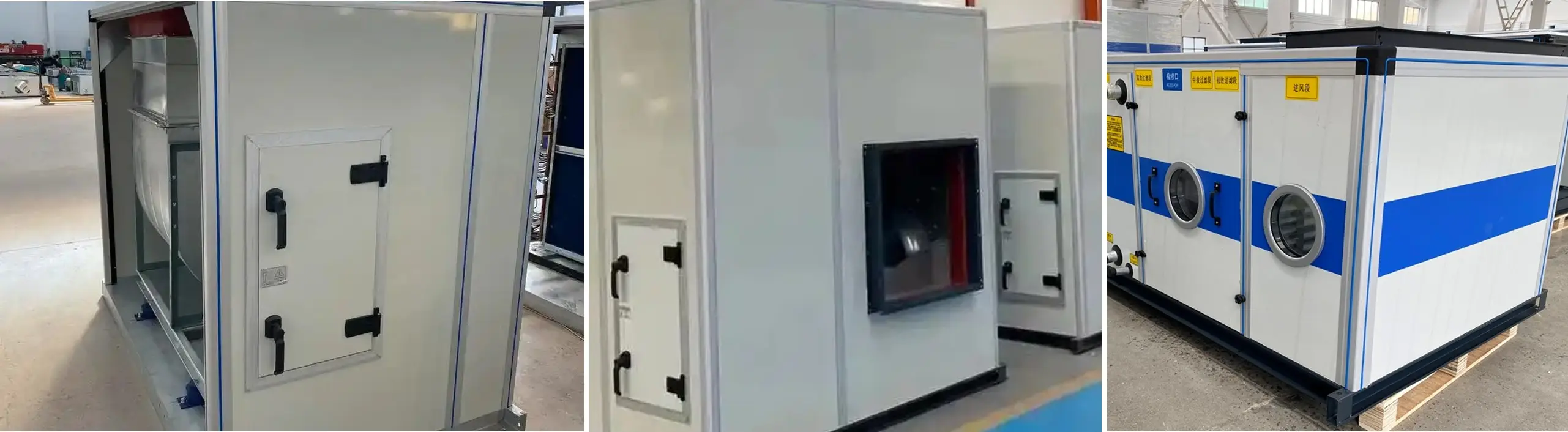

Product Introduction

Modular Air Conditioning Units are advanced, scalable HVAC solutions engineered for energy efficiency, flexible installation, and precise climate control. Unlike traditional centralized systems, these units are built with self-contained modules that can be easily added or removed based on demand—making them ideal for commercial buildings (offices, malls, hotels), industrial facilities (factories, warehouses, data centers), healthcare environments (hospitals, labs), and large residential complexes.

Product Details

Cooling Capacity

Model	Air Flow (m³/h)	4-Rows
Model	Air Flow (m³/h)	Total Cooling Capacity（Kw）	Sensible Cooling Capacity（Kw）	Pressure Drop(Pa)	Pressure Drop(KPa)	Water Flow Rate(m³/h)
ZK-3	3050	16.9	12.6	103	5.98	2.9
ZK-4	4016	22.6	16.9	104	7.94	3.9
ZK-5	5020	28.3	21.2	98	10.7	4.9
ZK-6	6186	33.8	25.4	100	10.7	5.8
ZK-8	8025	45	33.8	101	12.9	7.7
ZK-10	10068	56.4	42.3	111	14	9.7
ZK-12	12134	67.7	50.8	106	17.6	11.6
ZK-15	15075	85.3	64	106	17.3	14.7
ZK-20	20082	112.4	84.3	108	15.1	19.3
ZK-25	25025	140.7	105.5	118	18.5	24.2
ZK-30	30060	169.8	127.3	115	20.2	29.2
ZK-35	35350	198.1	148.6	115	18.8	34.1
ZK-40	40156	224.9	168.7	105	21.9	38.7
ZK-50	50562	282.6	211.9	119	23	48.6
ZK-60	60280	338.4	253.8	118	21.9	58.2
ZK-80	80156	448.8	336.6	119	27.1	77.2
ZK-100	100260	576.2	432.2	116	32.4	99.1
ZK-120	121056	694.3	520.7	119	35.4	119.4
ZK-140	140862	808.8	606.6	120	40.3	139.1
ZK-160	161236	923.4	692.6	115	46.8	158.8
ZK-180	180650	1034.2	775.7	112	52.3	177.9
ZK-200	201260	1108.1	831.1	112	62.1	190.6
ZK-220	222152	1218.9	914.2	115	62.1	209.6
ZK-250	251882	1385.1	1038.8	118	69.5	238.2

Model	Air Flow (m³/h)	8-Rows
Model	Air Flow (m³/h)	Total Cooling Capacity（Kw）	Sensible Cooling Capacity（Kw）	Pressure Drop(Pa)	Pressure Drop(KPa)	Water Flow Rate(m³/h)
ZK-3	3050	26.5	16.4	225	8.05	4.55
ZK-4	4016	34.8	21.6	246	8.05	5.99
ZK-5	5020	43.5	27	245	10.05	7.49
ZK-6	6186	53.7	33.3	257	11.3	9.23
ZK-8	8025	69.6	43.2	258	10.5	11.97
ZK-10	10068	87.3	54.1	260	12.9	15.02
ZK-12	12134	105.2	65.3	257	12.1	18.01
ZK-15	15075	130.8	81.1	255	15.1	22.49
ZK-20	20082	174.2	108	258	17.5	29.95
ZK-25	25025	217.1	134.6	257	18.9	37.33
ZK-30	30060	260.7	161.6	257	16.3	44.84
ZK-35	35350	306.6	190.1	254	17.8	52.73
ZK-40	40156	348.3	215.9	256	19.2	59.89
ZK-50	50562	438.5	271.9	264	16.8	75.42
ZK-60	60280	522.8	324.2	259	16.8	89.91
ZK-80	80156	695.2	431	256	18.9	119.6
ZK-100	100260	869.6	539.1	259	19.5	149.5
ZK-120	121056	1050	651	264	18.9	180.6
ZK-140	140862	1221.7	757.5	254	21.2	210.1
ZK-160	161236	1398.5	867	261	23.5	240.5
ZK-180	180650	1566.8	971.4	259	23.6	269.4
ZK-200	201260	1745.6	1082.3	258	27.8	300.2
ZK-220	222152	1926.8	1194.6	262	26.9	331.3
ZK-250	251882	2184.7	1354.5	264	35.4	375.7

Heating Capacity

Model	Air Flow (m³/h)	4-Rows
Model	Air Flow (m³/h)	Total Cooling Capacity(Kw)	Pressure Drop(Pa)	Pressure Drop(KPa)	Water Flow Rate(m³/h)
ZK-3	3050	25.5	93	5.49	2.2
ZK-4	4016	34.1	94	7.29	2.9
ZK-5	5020	42.7	88	9.8	3.7
ZK-6	6186	51.1	90	9.8	4.4
ZK-8	8025	68	91	11.8	5.8
ZK-10	10068	85.2	101	12.82	7.3
ZK-12	12134	102.2	96	16.16	8.8
ZK-15	15075	128.9	96	15.84	11.1
ZK-20	20082	169.8	98	13.86	14.6
ZK-25	25025	212.5	108	17.01	18.3
ZK-30	30060	256.4	105	18.54	22
ZK-35	35350	299.1	105	17.26	25.7
ZK-40	40156	339.6	95	20.08	29.2
ZK-50	50562	426.7	109	21.25	36.7
ZK-60	60280	510.9	108	20.11	43.9
ZK-80	80156	677.7	109	24.85	58.2
ZK-100	100260	870.1	106	29.74	74.8
ZK-120	121056	1048.4	109	32.5	90.1
ZK-140	140862	1221.3	110	37	104.9
ZK-160	161236	1394.3	105	42.94	119.8
ZK-180	180650	1561.6	102	48.05	134.2
ZK-200	201260	1673.2	102	57.01	143.8
ZK-220	222152	1840.5	105	57.01	158.1
ZK-250	251882	2091.5	108	63.8	179.7

Model	Air Flow (m³/h)	8-Rows
Model	Air Flow (m³/h)	Total Cooling Capacity(Kw)	Pressure Drop(Pa)	Pressure Drop(KPa)	Water Flow Rate(m³/h)
ZK-3	3050	39.9	200	7.39	3.43
ZK-4	4016	52.6	221	7.39	4.52
ZK-5	5020	65.7	220	9.59	5.65
ZK-6	6186	81	232	10.37	6.96
ZK-8	8025	105.1	233	9.64	9.03
ZK-10	10068	131.9	235	11.84	11.33
ZK-12	12134	158.9	232	11.1	13.65
ZK-15	15075	197.4	230	13.88	16.96
ZK-20	20082	263	233	16.05	22.6
ZK-25	25025	327.7	232	17.35	28.16
ZK-30	30060	393.7	232	14.95	33.83
ZK-35	35350	463	229	16.34	39.78
ZK-40	40156	525.9	231	17.63	45.19
ZK-50	50562	662.2	239	15.39	56.9
ZK-60	60280	789.5	234	15.42	67.83
ZK-80	80156	1049.8	231	17.35	90.2
ZK-100	100260	1313.1	234	17.9	112.8
ZK-120	121056	1585.4	239	17.35	136.2
ZK-140	140862	1844.8	229	19.46	158.5
ZK-160	161236	2111.7	236	21.57	181.4
ZK-180	180650	2365.9	234	21.67	203.3
ZK-200	201260	2635.8	233	25.52	226.5
ZK-220	222152	2909.5	237	24.69	250
ZK-250	251882	3298.8	239	32.49	283.4

Product Details

Advantages

🌟 Modular Air Conditioning Units are the ultimate solution for scalable, energy-efficient climate control.

🔧 Flexible & Expandable: Start with a single module and add more as your space or cooling load grows — no need for expensive system replacements!

💰 Massive Energy Savings: Equipped with high-efficiency compressors, variable-speed fans, and heat recovery technology, these units cut operational costs by 20% to 40% compared to traditional HVAC systems.

🎯 Precision Zoning: Independently control temperature, humidity, and airflow in different zones — keep server rooms cool ❄️ while maintaining comfortable temperatures in office areas ☀️ — without wasting energy.

🛡️ Built-in Reliability: Redundant module design ensures uninterrupted operation even if one unit fails — absolutely critical for hospitals 🏥, data centers 🖥️, and 24/7 manufacturing facilities 🏭.

🤫 Whisper-Quiet Operation: Most models operate below 65 dB — perfect for libraries 📚, classrooms 🎓, patient wards 🛏️, and hotel guest rooms 🏨.

📦 Space-Saving Design: Compact footprint fits rooftops, mechanical rooms, or tight interstitial spaces — no bulky ductwork needed.

📱 Smart & Connected: Fully compatible with BMS integration, remote monitoring, and IoT platforms — enabling predictive maintenance and real-time optimization from anywhere in the world 🌍.

✅ Future-Proof Investment: Whether upgrading old equipment or building a new green facility 🌿, Modular Air Conditioning Units deliver long-term cost savings, superior comfort, and compliance with global sustainability standards.

Applications

Commercial Office Buildings: Ideal for open-plan offices, conference rooms, and executive suites where zoning and individual temperature control are required.
Data Centers & Server Rooms: Provides precise cooling for critical IT infrastructure, ensuring stable operation and preventing overheating of servers and network equipment.
Hospitals & Healthcare Facilities: Suitable for operating rooms, patient wards, laboratories, and pharmaceutical storage areas that demand strict temperature and humidity control.
Hotels & Resorts: Used in guest rooms, lobbies, restaurants, and banquet halls to deliver quiet, comfortable, and energy-efficient climate management.
Industrial Factories & Warehouses: Effective for cooling large production floors, assembly lines, storage areas, and workshops with high heat loads.
Clean Rooms & Laboratories: Meets the stringent air quality and temperature requirements of semiconductor manufacturing, biotechnology, and pharmaceutical research.
Educational Institutions: Applied in classrooms, lecture halls, libraries, and auditoriums to create a comfortable learning environment.
Shopping Malls & Retail Stores: Maintains consistent comfort across large retail spaces, food courts, and entertainment zones.
Residential Complexes & Luxury Apartments: Offers decentralized cooling solutions for multi-story residential buildings, allowing independent control per unit.
Agricultural & Greenhouses: Supports controlled environment agriculture by regulating temperature and humidity for crop growth.

Modular Air Handling Units

Modular Air Conditioning Unit: High-efficiency, energy-saving HVAC solution for flexible climate control in commercial & industrial spaces.
