Unit Model | Unit Air Flow (m³/h) | Unit Overall | Face Velocity | Outlet Static | |||
2.25 | 2.5 | 2.75 | |||||
W | H | Air Flow（m³/h） | |||||
ZK(X)-3 | 3050 | 805 | 885 | 2745 | 3050 | 3355 | 200～800 |
ZK(X)-4 | 4016 | 905 | 885 | 3614.4 | 4016 | 4417.6 | 200～800 |
ZK(X)-5 | 5020 | 1005 | 985 | 4518 | 5020 | 5522 | 200～800 |
ZK(X)-6 | 6186 | 1005 | 1085 | 5567.4 | 6186 | 6804.6 | 200～800 |
ZK(X)-8 | 8025 | 1205 | 1185 | 7222.5 | 8025 | 8827.5 | 200～800 |
ZK(X)-10 | 10068 | 1205 | 1285 | 9061.2 | 10068 | 11074.8 | 200～1000 |
ZK(X)-12 | 12134 | 1305 | 1285 | 10920.6 | 12134 | 13347.4 | 200～1000 |
ZK(X)-15 | 15075 | 1405 | 1385 | 13576.5 | 15075 | 16582.5 | 200～1000 |
ZK(X)-20 | 20082 | 1605 | 1885 | 18073.8 | 20082 | 22090.2 | 300～1000 |
ZK(X)-25 | 25025 | 1805 | 1885 | 22522.5 | 25025 | 27527.5 | 300～1000 |
ZK(X)-30 | 30060 | 1805 | 2185 | 27054 | 30060 | 33066 | 300～1200 |
ZK(X)-35 | 35350 | 2005 | 2285 | 31815 | 35350 | 38885 | 500～1200 |
ZK(X)-40 | 40156 | 2105 | 2405 | 36140.4 | 40156 | 44171.6 | 500～1200 |
ZK-50 | 50562 | 2505 | 2505 | 45505.8 | 50562 | 55618.2 | 500～1500 |
ZK-60 | 60280 | 2905 | 2506 | 54252 | 60280 | 66308 | 500～1500 |
ZK-80 | 80156 | 3005 | 3405 | 72140.4 | 80156 | 88171.6 | 500～1500 |
ZK-100 | 100260 | 3605 | 3505 | 90234 | 100260 | 110286 | 600～1500 |
ZK-120 | 121056 | 4305 | 3505 | 108950.4 | 121056 | 133161.6 | 600～1500 |
ZK-140 | 140862 | 4505 | 3805 | 126775.8 | 140862 | 154948.2 | 600～1500 |
ZK-160 | 161236 | 4805 | 4105 | 145112.4 | 161236 | 177359.6 | 600～1500 |
ZK-180 | 180650 | 5205 | 4505 | 162585 | 180650 | 198715 | 600～1500 |
ZK-200 | 201260 | 5705 | 4505 | 181134 | 201260 | 221386 | 600～1500 |
ZK-220 | 222152 | 5905 | 4505 | 199936.8 | 222152 | 244367.2 | 600～1800 |
ZK-250 | 251882 | 6005 | 4905 | 226693.8 | 251882 | 277070.2 | 600～1800 |

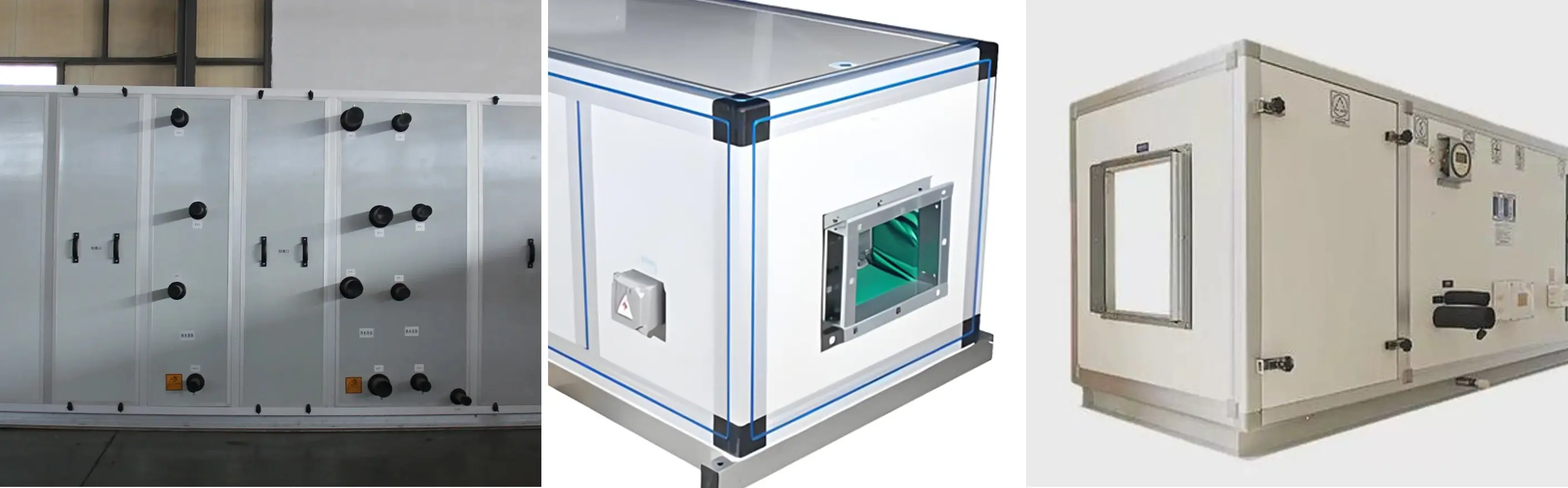

Our Modular Air Handling Unit (MAHU) redefines commercial climate control with its energy - efficient, scalable, and whisper - quiet design. Engineered for precision, it delivers up to 40% energy savings versus traditional HVAC systems, making it ideal for data centers, hospitals, hotels, LEED - certified buildings, and clean rooms (Class 100–100,000). The modular architecture allows seamless capacity expansion—add units as your business grows, no costly ductwork replacement or downtime required. With variable - speed fans, smart BMS/PMS integration, and redundant modules, it ensures 99.99% uptime and <65dB noise levels (perfect for patient care, server rooms, or open - plan offices). Whether you’re retrofitting an old facility or building a new “green” campus, our MAHU combines future - proof flexibility, hygienic air filtration, and industry - leading reliability to meet your most demanding HVAC needs. From university research labs to luxury hotel lobbies, trust our modular solution to deliver consistent, cost - effective comfort while reducing your carbon footprint.
Model | Air Flow (m³/h) | 4-Rows | ||||
Total Cooling Capacity（Kw） | Sensible Cooling Capacity（Kw） | Pressure Drop(Pa) | Pressure Drop(KPa) | Water Flow Rate(m³/h) | ||
ZK-3 | 3050 | 16.9 | 12.6 | 103 | 5.98 | 2.9 |
ZK-4 | 4016 | 22.6 | 16.9 | 104 | 7.94 | 3.9 |
ZK-5 | 5020 | 28.3 | 21.2 | 98 | 10.7 | 4.9 |
ZK-6 | 6186 | 33.8 | 25.4 | 100 | 10.7 | 5.8 |
ZK-8 | 8025 | 45 | 33.8 | 101 | 12.9 | 7.7 |
ZK-10 | 10068 | 56.4 | 42.3 | 111 | 14 | 9.7 |
ZK-12 | 12134 | 67.7 | 50.8 | 106 | 17.6 | 11.6 |
ZK-15 | 15075 | 85.3 | 64 | 106 | 17.3 | 14.7 |
ZK-20 | 20082 | 112.4 | 84.3 | 108 | 15.1 | 19.3 |
ZK-25 | 25025 | 140.7 | 105.5 | 118 | 18.5 | 24.2 |
ZK-30 | 30060 | 169.8 | 127.3 | 115 | 20.2 | 29.2 |
ZK-35 | 35350 | 198.1 | 148.6 | 115 | 18.8 | 34.1 |
ZK-40 | 40156 | 224.9 | 168.7 | 105 | 21.9 | 38.7 |
ZK-50 | 50562 | 282.6 | 211.9 | 119 | 23 | 48.6 |
ZK-60 | 60280 | 338.4 | 253.8 | 118 | 21.9 | 58.2 |
ZK-80 | 80156 | 448.8 | 336.6 | 119 | 27.1 | 77.2 |
ZK-100 | 100260 | 576.2 | 432.2 | 116 | 32.4 | 99.1 |
ZK-120 | 121056 | 694.3 | 520.7 | 119 | 35.4 | 119.4 |
ZK-140 | 140862 | 808.8 | 606.6 | 120 | 40.3 | 139.1 |
ZK-160 | 161236 | 923.4 | 692.6 | 115 | 46.8 | 158.8 |
ZK-180 | 180650 | 1034.2 | 775.7 | 112 | 52.3 | 177.9 |
ZK-200 | 201260 | 1108.1 | 831.1 | 112 | 62.1 | 190.6 |
ZK-220 | 222152 | 1218.9 | 914.2 | 115 | 62.1 | 209.6 |
ZK-250 | 251882 | 1385.1 | 1038.8 | 118 | 69.5 | 238.2 |
Model | Air Flow (m³/h) | 8-Rows | ||||
Total Cooling Capacity（Kw） | Sensible Cooling Capacity（Kw） | Pressure Drop(Pa) | Pressure Drop(KPa) | Water Flow Rate(m³/h) | ||
ZK-3 | 3050 | 26.5 | 16.4 | 225 | 8.05 | 4.55 |
ZK-4 | 4016 | 34.8 | 21.6 | 246 | 8.05 | 5.99 |
ZK-5 | 5020 | 43.5 | 27 | 245 | 10.05 | 7.49 |
ZK-6 | 6186 | 53.7 | 33.3 | 257 | 11.3 | 9.23 |
ZK-8 | 8025 | 69.6 | 43.2 | 258 | 10.5 | 11.97 |
ZK-10 | 10068 | 87.3 | 54.1 | 260 | 12.9 | 15.02 |
ZK-12 | 12134 | 105.2 | 65.3 | 257 | 12.1 | 18.01 |
ZK-15 | 15075 | 130.8 | 81.1 | 255 | 15.1 | 22.49 |
ZK-20 | 20082 | 174.2 | 108 | 258 | 17.5 | 29.95 |
ZK-25 | 25025 | 217.1 | 134.6 | 257 | 18.9 | 37.33 |
ZK-30 | 30060 | 260.7 | 161.6 | 257 | 16.3 | 44.84 |
ZK-35 | 35350 | 306.6 | 190.1 | 254 | 17.8 | 52.73 |
ZK-40 | 40156 | 348.3 | 215.9 | 256 | 19.2 | 59.89 |
ZK-50 | 50562 | 438.5 | 271.9 | 264 | 16.8 | 75.42 |
ZK-60 | 60280 | 522.8 | 324.2 | 259 | 16.8 | 89.91 |
ZK-80 | 80156 | 695.2 | 431 | 256 | 18.9 | 119.6 |
ZK-100 | 100260 | 869.6 | 539.1 | 259 | 19.5 | 149.5 |
ZK-120 | 121056 | 1050 | 651 | 264 | 18.9 | 180.6 |
ZK-140 | 140862 | 1221.7 | 757.5 | 254 | 21.2 | 210.1 |
ZK-160 | 161236 | 1398.5 | 867 | 261 | 23.5 | 240.5 |
ZK-180 | 180650 | 1566.8 | 971.4 | 259 | 23.6 | 269.4 |
ZK-200 | 201260 | 1745.6 | 1082.3 | 258 | 27.8 | 300.2 |
ZK-220 | 222152 | 1926.8 | 1194.6 | 262 | 26.9 | 331.3 |
ZK-250 | 251882 | 2184.7 | 1354.5 | 264 | 35.4 | 375.7 |
Model | Air Flow (m³/h) | 4-Rows | |||
Total Cooling Capacity(Kw) | Pressure Drop(Pa) | Pressure Drop(KPa) | Water Flow Rate(m³/h) | ||
ZK-3 | 3050 | 25.5 | 93 | 5.49 | 2.2 |
ZK-4 | 4016 | 34.1 | 94 | 7.29 | 2.9 |
ZK-5 | 5020 | 42.7 | 88 | 9.8 | 3.7 |
ZK-6 | 6186 | 51.1 | 90 | 9.8 | 4.4 |
ZK-8 | 8025 | 68 | 91 | 11.8 | 5.8 |
ZK-10 | 10068 | 85.2 | 101 | 12.82 | 7.3 |
ZK-12 | 12134 | 102.2 | 96 | 16.16 | 8.8 |
ZK-15 | 15075 | 128.9 | 96 | 15.84 | 11.1 |
ZK-20 | 20082 | 169.8 | 98 | 13.86 | 14.6 |
ZK-25 | 25025 | 212.5 | 108 | 17.01 | 18.3 |
ZK-30 | 30060 | 256.4 | 105 | 18.54 | 22 |
ZK-35 | 35350 | 299.1 | 105 | 17.26 | 25.7 |
ZK-40 | 40156 | 339.6 | 95 | 20.08 | 29.2 |
ZK-50 | 50562 | 426.7 | 109 | 21.25 | 36.7 |
ZK-60 | 60280 | 510.9 | 108 | 20.11 | 43.9 |
ZK-80 | 80156 | 677.7 | 109 | 24.85 | 58.2 |
ZK-100 | 100260 | 870.1 | 106 | 29.74 | 74.8 |
ZK-120 | 121056 | 1048.4 | 109 | 32.5 | 90.1 |
ZK-140 | 140862 | 1221.3 | 110 | 37 | 104.9 |
ZK-160 | 161236 | 1394.3 | 105 | 42.94 | 119.8 |
ZK-180 | 180650 | 1561.6 | 102 | 48.05 | 134.2 |
ZK-200 | 201260 | 1673.2 | 102 | 57.01 | 143.8 |
ZK-220 | 222152 | 1840.5 | 105 | 57.01 | 158.1 |
ZK-250 | 251882 | 2091.5 | 108 | 63.8 | 179.7 |
Model | Air Flow (m³/h) | 8-Rows | |||
Total Cooling Capacity(Kw) | Pressure Drop(Pa) | Pressure Drop(KPa) | Water Flow Rate(m³/h) | ||
ZK-3 | 3050 | 39.9 | 200 | 7.39 | 3.43 |
ZK-4 | 4016 | 52.6 | 221 | 7.39 | 4.52 |
ZK-5 | 5020 | 65.7 | 220 | 9.59 | 5.65 |
ZK-6 | 6186 | 81 | 232 | 10.37 | 6.96 |
ZK-8 | 8025 | 105.1 | 233 | 9.64 | 9.03 |
ZK-10 | 10068 | 131.9 | 235 | 11.84 | 11.33 |
ZK-12 | 12134 | 158.9 | 232 | 11.1 | 13.65 |
ZK-15 | 15075 | 197.4 | 230 | 13.88 | 16.96 |
ZK-20 | 20082 | 263 | 233 | 16.05 | 22.6 |
ZK-25 | 25025 | 327.7 | 232 | 17.35 | 28.16 |
ZK-30 | 30060 | 393.7 | 232 | 14.95 | 33.83 |
ZK-35 | 35350 | 463 | 229 | 16.34 | 39.78 |
ZK-40 | 40156 | 525.9 | 231 | 17.63 | 45.19 |
ZK-50 | 50562 | 662.2 | 239 | 15.39 | 56.9 |
ZK-60 | 60280 | 789.5 | 234 | 15.42 | 67.83 |
ZK-80 | 80156 | 1049.8 | 231 | 17.35 | 90.2 |
ZK-100 | 100260 | 1313.1 | 234 | 17.9 | 112.8 |
ZK-120 | 121056 | 1585.4 | 239 | 17.35 | 136.2 |
ZK-140 | 140862 | 1844.8 | 229 | 19.46 | 158.5 |
ZK-160 | 161236 | 2111.7 | 236 | 21.57 | 181.4 |
ZK-180 | 180650 | 2365.9 | 234 | 21.67 | 203.3 |
ZK-200 | 201260 | 2635.8 | 233 | 25.52 | 226.5 |
ZK-220 | 222152 | 2909.5 | 237 | 24.69 | 250 |
ZK-250 | 251882 | 3298.8 | 239 | 32.49 | 283.4 |
🌟 Energy Efficiency & Cost Savings--Our Modular Air Handling Unit (MAHU) slashes energy consumption by up to 40% vs. traditional HVAC systems. High - efficiency compressors, variable - speed fans, and heat recovery technology cut electricity bills and ensure fast ROI. 💰⚡
🧩 Modular & Scalable Design--Start with one module and expand seamlessly as your business grows—no expensive ductwork replacement, no downtime, no major construction. Perfect for phased renovations or growing facilities (e.g., offices, campuses, factories). 📈🏗️
🤫 Ultra - Quiet Operation--Noise levels stay below 65 dB (quieter than a normal conversation!), making it ideal for noise - sensitive spaces: hospitals 🏥, libraries 📚, hotels 🏨, and open - plan offices 🏢. Maintain productivity and comfort without disruption.
🛡️ Smart & Reliable Performance--Integrated with BMS/PMS, remote monitoring, and IoT support for 99.99% uptime. Redundant modules and predictive maintenance prevent unexpected failures—your operations never skip a beat. 📱🌐
🌍 Versatile Applications--From LEED - certified “green” buildings 🌿 to clean rooms (Class 100–100,000) 🔬, data centers 🖥️, commercial offices, hotels, hospitals, schools 🎓, and industrial plants 🏭—one solution fits all. Adapts to any environment, no matter how specialized.
🚀 Future - Proof Investment--As your business evolves, your cooling system evolves with you. Scale capacity, upgrade features, or add modules—protecting your investment for decades. Ideal for long - term growth. ✅
Upgrade your climate control with our energy - efficient, space - saving Modular Air Handling Unit. Perfect for commercial offices, data centers, hospitals, and hotels—delivering zoned comfort, whisper - quiet operation (<65dB), and up to 40% energy savings.
