Specifications

Parameter	Specification	Notes
Cooling Medium	Ambient Air	Zero water consumption – 100% water saving rate
Cooling Capacity	20 kW ~ 5 MW per module	Multiple modules can be connected in parallel to match different load requirements
Working Fluid	Water, Glycol Solution, Process Oil, Refrigerant, etc.	Compatible with various media for data centers, refrigeration, chemical processing, etc.
Working Pressure	0.3 ~ 16.0 MPa	High-pressure / low-pressure coils customizable per working conditions
Operating Temperature	-40°C ~ 120°C	Optional anti-freeze / defrost configuration for low-temperature environments
Fan Power	0.75 ~ 15 kW per fan	Depending on fan size and speed control type

Product Introduction

Core Working Principle

Fluid Flow Path

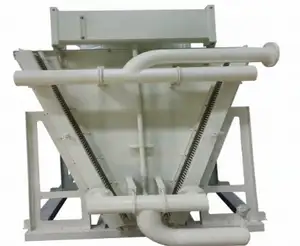

Hot fluid (water, glycol solution, or process fluid) enters the V-Type Dry Cooler from the bottom and flows through the V-shaped finned tube coils. As the fluid travels along the tubes, heat is transferred from the tube wall to the fins.

Air Flow Path

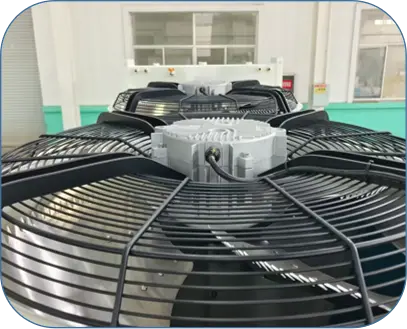

Top-mounted axial fans draw ambient air from below or from both sides. The air flows vertically upward across the V-shaped coil banks, making full contact with the fin surfaces. Heated air is then discharged from the top of the unit.

Enhanced Heat Transfer

The V-shaped configuration ensures uniform airflow distribution across the coils, minimizing air bypass and short-circuiting. Additionally, the fin geometry is designed to promote air turbulence, which significantly improves the heat transfer coefficient and overall thermal performance of the air cooled dry cooler.

Selection & Installation Key Points

Selection Basis: The following information must be provided for customized heat transfer area and fan configuration: medium type, flow rate, inlet/outlet temperature, working pressure, ambient temperature, and installation space dimensions.
Installation Requirements: The equipment must be installed level/horizontally, with maintenance access reserved. For outdoor installation, proper rain, sun, and corrosion protection measures should be taken. Fan installation must ensure unobstructed airflow.
Operation & Maintenance: Clean dust accumulation on the fin surface regularly (an online blow-off device can be configured). Check the fan operating status. Conduct a pressure test on the tube bundle every 1–2 years.

Optional Configurations & Upgrades

Anti-Corrosion Upgrade: Tube bundle made of seamless copper tubes; fins treated with galvanized/aluminized coating, suitable for corrosive media.

Energy-Saving Upgrade: Fans equipped with variable frequency drive (VFD), automatically adjusting speed based on cooling load to reduce energy consumption.

Smart Upgrade: Addition of temperature and pressure sensors, connected to the DCS system, enabling remote monitoring and automatic control.

About Shunda – Your Expert Partner in Air Movement

Founded in 2005, Shunda Air Conditioning Equipment Group Co., Ltd., known by our distinguished brand "Jinxin Shunda," is a cornerstone of innovation in China's HVAC industry. Operating from our advanced 70,000m² facility in Shandong, our dedicated team of 27 R&D engineers drives progress across a comprehensive portfolio. As a national high-tech enterprise certified to ISO 9001, ISO 14001, ISO 45001, and holding the crucial CE Marking, we deliver more than equipment—we provide reliable, certified air movement solutions for complex industrial applications worldwide. Our products, ranging from robust high pressure centrifugal blower units to specialized corrosion-resistant systems, have been integral to landmark projects from the Beijing West Railway Station to major international constructions across Asia and Africa.

Advantages

Compact V-Shape Design – Saves floor space while maximizing heat exchange area.

High Thermal Performance – Advanced finned tube coils deliver efficient air cooling.

Zero Water Consumption – True dry cooling, no evaporation, no water treatment cost.

Energy-Efficient Fans – EC or AC axial fans with variable speed for lower operating cost.

Durable Construction – Corrosion-resistant materials for long outdoor service life.

Low Maintenance – Easy access design reduces cleaning and inspection downtime.

Versatile Applications – Suitable for data centers, industrial process cooling, and chiller systems.

Customizable Options – Coil rows, fan quantity, and controls tailored to project needs.

Applications

🔹 Data Centers & IT Infrastructure
— Provides reliable, non-potable water-free cooling for server racks and critical equipment, reducing water consumption by 95%+ compared to evaporative cooling systems.
— Operates silently with low vibration, ensuring minimal disruption in sensitive computing environments.
🔹 Industrial Refrigeration & Cold Storage
— Cools ammonia, glycol, or CO₂-based refrigeration systems in food processing plants, cold storage warehouses, and pharmaceutical facilities.
— Eliminates risk of water contamination and Legionella growth associated with wet cooling towers.
🔹 Chemical Processing & Petrochemical Plants
— Handles high-temperature process streams (up to 150°C) with corrosion-resistant finned tubes (typically aluminum or galvanized steel).
— Suitable for closed-loop cooling of reactors, distillation columns, and heat exchangers where water conservation is mandatory.
🔹 HVAC & Building Systems
— Integrates into large-scale air conditioning systems for commercial buildings, hospitals, and schools — especially in arid regions or areas with strict water regulations.
— Reduces reliance on municipal water supply and lowers operational costs.
🔹 Power Generation & Renewable Energy
— Used in gas turbine exhaust cooling, geothermal power plants, and solar thermal systems.
— Supports hybrid cooling strategies where water availability is limited or seasonal.
🔹 Agriculture & Livestock Facilities
— Maintains optimal temperature and humidity in greenhouses, poultry farms, and dairy barns — preventing heat stress in animals and crops.
— No water required = no risk of bacterial growth or runoff pollution.
🔹 Oil & Gas / Mining Operations
— Deployed in remote sites where water is scarce or expensive to transport.
— Withstands harsh environmental conditions including dust, sand, and extreme temperatures.
🔹 Pharmaceutical & Laboratory Environments
— Provides clean, dry, contamination-free cooling for sensitive R&D equipment and cleanrooms.
— Compliant with GMP and ISO standards due to absence of water-based contaminants.

V-Type Dry Cooler | V-Shaped Air Cooled Dry Cooler Manufacturer

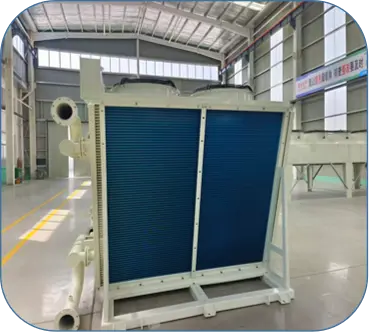

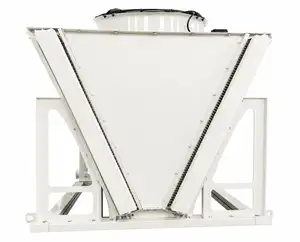

A V-Type Dry Cooler (also known as a V-Shaped Air Cooler / Dry Air Cooler) is a forced-convection air cooling unit featuring a V-shaped arrangement of finned tube bundles. It uses ambient air as the cooling medium, with top-mounted fans drawing air across the coils to remove heat from the fluid inside the tubes, thereby reducing the fluid temperature. As a highly efficient and water-saving heat exchange device, the V-Type Dry Cooler delivers greater cooling capacity in a smaller footprint compared to traditional horizontal air coolers. It is widely used in data centers, industrial refrigeration, chemical process cooling, HVAC systems, and other applications — especially where space is limited and water conservation is critical.
