Parameter | Specification |
Material | SMC (Sheet Molding Compound) with FRP/GRP reinforcement |
Panel Thickness | 3mm / 5mm / 8mm / 10mm / 12mm (based on tank height) |
Standard Panel Dimensions | 1000×1000mm / 1000×500mm / 500×500mm |
Capacity Range | 1 m³ to 10,000+ m³ (custom) |
Tank Height Options | 1m / 1.5m / 2m / 2.5m / 3m / 4m / 5m / 6m |
Working Temperature | -40°C to +60°C |
Design Pressure | Atmospheric (vented) or 0.1 MPa (sealed) |
Gasket Material | EPDM rubber (standard) / Silicone (high temp) / NBR (oil resistant) |
Inner Coating | Standard smooth finish / Optional food-grade epoxy / Stainless steel 304/316L liner |
Connection Types | Flanged (PN10/16) / Threaded (BSP/NPT) / Grooved (Victaulic) |
Accessories | Manhole (600×600mm or 800×800mm), Ventilation cap, Overflow pipe, Drain valve, Level indicator (float or ultrasonic), Internal/External ladder, Support I-beam base frame |
Color | Standard blue/gray/white / Custom RAL color |
Certification | ISO 9001, CE, NSF/ANSI 61 (optional), WRAS (optional) |
Warranty | 5 years (panels) / 1 year (accessories) |
Lifespan | 30–50 years (with proper maintenance) |

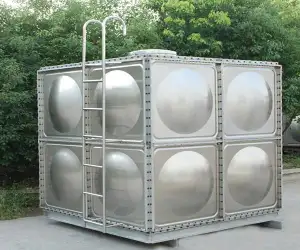

Leading Stainless Steel Water Storage Tank Manufacturer providing high-quality 304 and 316 stainless steel water tanks for residential, commercial, industrial, and municipal water storage applications. Durable, corrosion-resistant, hygienic, and customizable to meet global project requirements.
