Required Fresh Air Volume for Civil Comfort Air Conditioning Rooms

Calculation Example:

For a computer room with area S=60(m²), ceiling height h=3(m), and occupancy n=10(persons):

• If calculated based on fresh air volume per capita, taking q=70(m³/h) per person:
  Fresh air volume Q1 = n·q = 10 × 70 = 700 (m³/h).

• If calculated based on air changes per hour (ACH), taking p=5 (times/h):
  Fresh air volume Q2 = p·S·h = 5 × 60 × 3 = 900 (m³/h).

Since Q2 > Q1, Q2 (i.e., 900 m³/h) is adopted as the parameter for equipment selection.

Standard Models & Customization Services

The performance data below represents our standard model series. However, as a specialist manufacturer, we understand that every project is unique.

We offer comprehensive custom solutions tailored to your exact specifications.

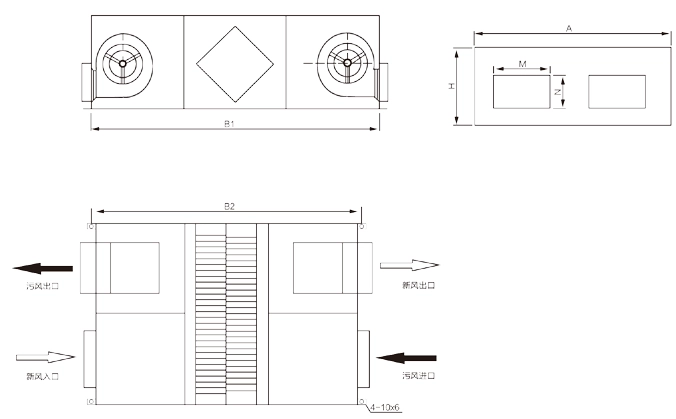

Ceiling Series Overall Dimensions Drawing

Overall Dimension Table

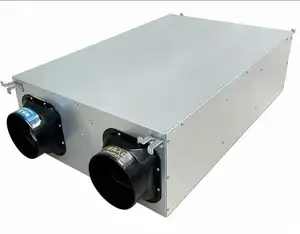

Product Introduction

The fresh air ventilator is an innovative environmental appliance designed to ensure a continuous supply of clean, oxygen-rich air by mechanically forcing the circulation of fresh air indoors. It forms an independent air exchange and purification system that simultaneously expels indoor pollutants when treating incoming fresh air through processes such as filtration, heating and oxygen enrichment.

With its high-efficiency internal heat recovery system and various types options, this ventilator is ideal for residential, commercial and industrial spaces ranging from15 m² to 1100 m². It works quietly, consumes low energy, and requires minimal maintenance, making it a cost-effective solution for improving indoor air quality and energy savings.

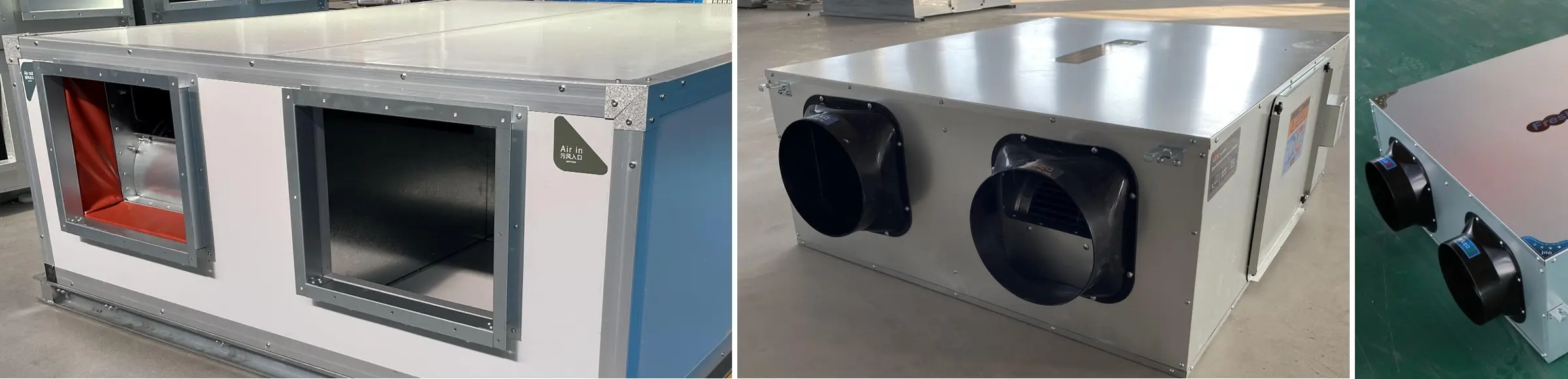

Product Details

Packaging&Shipping

To ensure safe delivery and smooth installation, every fresh air ventilator is carefully packaged with proper packages. The ventilators are typically shipped fully assembled, allowing for quick setup at the project site. To prevent moisture, damage and handling wear, every ventilator is wrapped in waterproof protective film and stabilized with strong wooden pallets or reinforced crates.

We provide flexible packaging solutions according to customer requirements including custom logos, export-grade reinforced crates, and stackable layouts for optimized container loading. The packaging is specifically designed for international shipping by sea, air or land to ensure the maximum safety and space efficiency. Every shipment includes a packing list, detailed installation manual, and user-friendly handling instructions to support smooth and accurate on-site installation.

Company Profile

Shunda Air Conditioning Equipment Group Co., Ltd. is a expert HVAC producer located in 2005, positioned in Luquantun Industrial Park, Shandong Province—right in the center of China’s central air conditioning industry. Our factory covers over 70,000 rectangular meters and is domestic to a expert group of 230 group of workers members, together with 27 engineers centered on R&D and innovation.
Shunda specializes in reliable HVAC system and smoke exhaust solutions, providing more than 70 types products including modular air conditioning units, fan coil units, ventilators, fans, fireplace dampers, and air ducts. We are licensed to ISO9001, ISO14001 and ISO18001 standards, and have got many countrywide awards recognizing our dedication to first-class and innovation.
Under the company brand “Jinxin Shunda,” we have accomplished severa landmark initiatives in the course of China and have progressively increased into global markets throughout Southeast Asia, Africa and beyond. With a robust center of attention on innovation, quality and patron service, Shunda is always developing and searching ahead to constructing long-term world partnerships.

1️⃣ Balanced Ventilation System

Delivers fresh outdoor air while simultaneously expelling stale indoor air, maintaining a healthy and comfortable indoor environment with minimal impact on room temperature.

2️⃣ Advanced Filtration Technology

Equipped with high-performance filters that effectively remove dust, pollen, PM2.5, harmful particles, and pollutants from incoming air, ensuring clean and pure airflow.

3️⃣ High-Efficiency Heat Recovery

Built-in heat exchanger achieves over 70% heat exchange rate, significantly reducing energy loss and lowering heating/cooling costs while keeping indoor temperature stable.

4️⃣ Wide Application Range

Suitable for spaces from 15 m² to 1100 m², with multiple model options available for residential apartments, villas, offices, schools, hotels, hospitals, and commercial buildings.

5️⃣ Quiet & Stable Operation

Low-noise fan combined with internal sound insulation ensures whisper-quiet performance, making it ideal for bedrooms, meeting rooms, libraries, and other noise-sensitive areas.

6️⃣ Space & Cost Saving

Replaces traditional bulky fresh air treatment systems without the need for a separate equipment room, reducing both equipment investment and ongoing energy costs.

7️⃣ Durable & Low Maintenance

Manufactured with high-quality materials under ISO-certified production lines. Requires minimal maintenance, ensuring long service life and reliable performance.

8️⃣ Easy Installation & Flexible Configuration

Units are shipped fully assembled with waterproof packaging on wooden pallets. Quick and simple on-site setup saves installation time and labor costs.
